To search by structure, left click in the box below to display the chemdraw toolbar. Then, draw the chemical structure of interest in the box using the toolbar. When your structure is complete, click “Search by Name” or “Search by SMILES” to generate the product name or SMILES respectively. This feature will search within the Gelest product database for matching chemical names or SMILES. Note: In cases where Gelest uses alternate chemical names, it may be necessary to search for the product of interest by its CAS#.

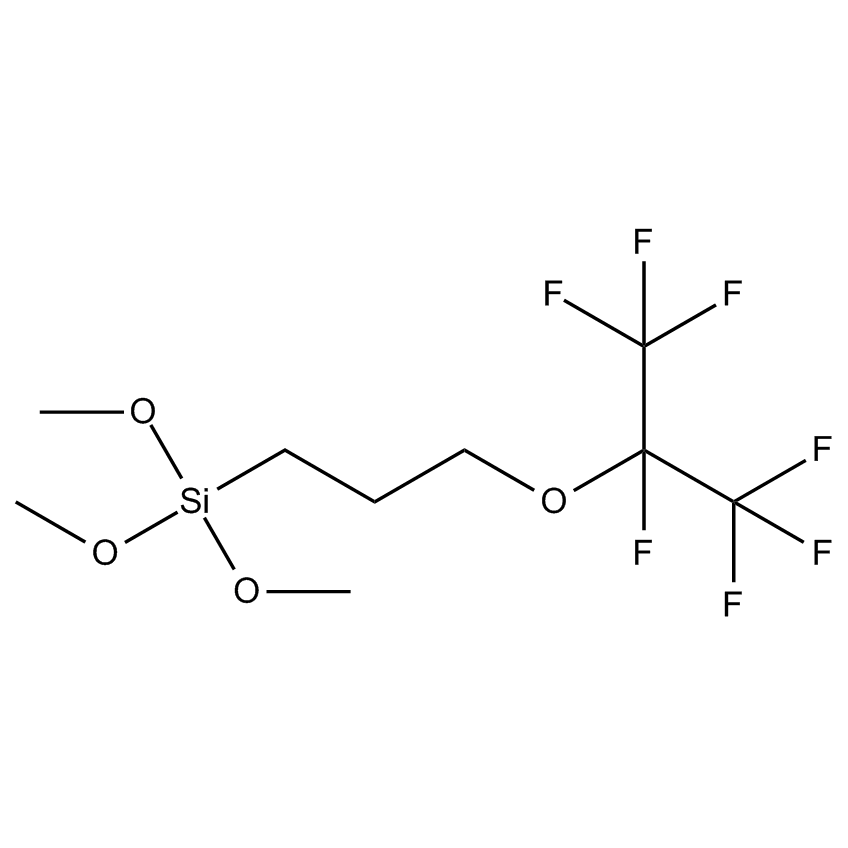

- Molecular Formula C9H15F7O4Si
- Molecular Weight (g/mol) 348.29
- Purity (%) 97%
- TSCA Yes (L)Low Volume Exemption
- Refractive Index @ 20˚C 1.3841
Aligns liquid crystals.1
1. Jap. Pat. 57177121, 1982
Fluorinated Alkyl Silane - Conventional Surface Bonding
Aliphatic, fluorinated aliphatic or substituted aromatic hydrocarbon substituents are the hydrophobic entities which enable silanes to induce surface hydrophobicity. The organic substitution of the silane must be non-polar. The hydrophobic effect of the organic substitution can be related to the free energy of transfer of hydrocarbon molecules from an aqueous phase to a homogeneous hydrocarbon phase. A successful hydrophobic coating must eliminate or mitigate hydrogen bonding and shield polar surfaces from interaction with water by creating a non-polar interphase. Although silane and silicone derived coatings are in general the most hydrophobic, they maintain a high degree of permeability to water vapor. This allows coatings to breathe and reduce deterioration at the coating interface associated with entrapped water. Since ions are not transported through non-polar silane and silicone coatings, they offer protection to composite structures ranging from pigmented coatings to rebar reinforced concrete. A selection guide for hydrophobic silanes can be found on pages 22-31 of the Hydrophobicity, Hydrophilicity and Silane Surface Modification brochure.
