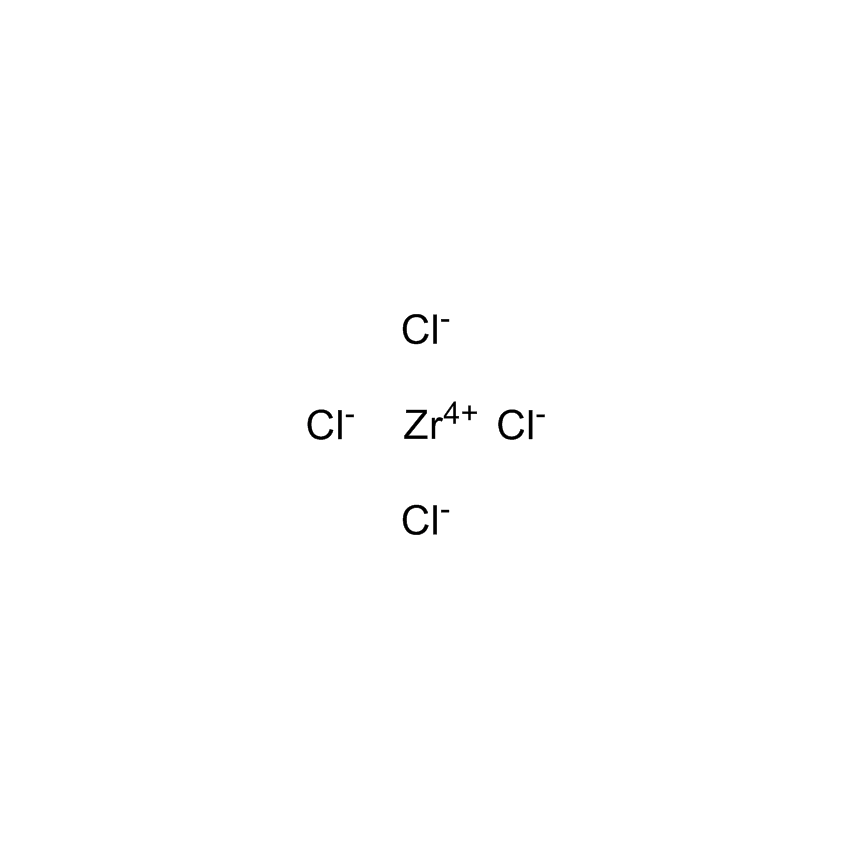

10026-11-6

All structures are computer generated. Please rely on the product data below for placing your order. If you see any errors in structures, please email customer service so that they can be addressed.

ZIRCONIUM TETRACHLORIDE, 99+%

Product Code: INZR065

Cas No: 10026-11-6

R&D quantities:

100 g
$44.00
500 g
$176.00

Interested in a Commercial Order?

ALD Material

Atomic layer deposition (ALD) is a chemically self-limiting deposition technique that is based on the sequential use of a gaseous chemical process. A thin film (as fine as -0.1 Å per cycle) results from repeating the deposition sequence as many times as needed to reach a certain thickness. The major characteristic of the films is the resulting conformality and the controlled deposition manner. Precursor selection is key in ALD processes, namely finding molecules which will have enough reactivity to produce the desired films yet are stable enough to be handled and safely delivered to the reaction chamber.

Zirconium tetrachloride; Tetrachlorozirconium; Zirconium(IV) chloride, anhydrous
  • ΔHsub: 100 kcal/mol
  • Vapor pressure, 190 °C: 1 mm
  • Boiling Point: 331° sub

    Melting Point: 437°

    Molecular Weight: 233.03

    Specific Gravity: 2.803

    HMIS Key: 3-0-1-X

    Hydrolytic Sensitivity: 7: reacts slowly with moisture/water

    Formula: Cl4Zr

    Purity: 99%

    TSCA: TSCA

    Fieser: F&F: Vol. 1, p 1295.

    Additional Properties: ?Hsub: 100 kJ/mole
    Vapor pressure, 190°: 1 mm
